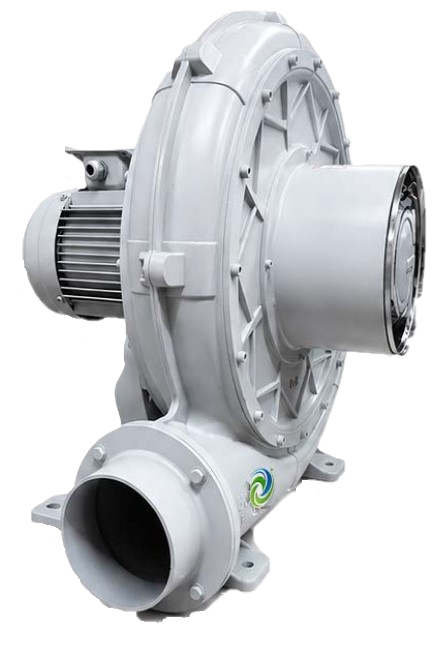

The CX Series centrifugal blowers feature a precision aluminium die-cast housing designed for high-efficiency air delivery, low vibration, and superior thermal management across demanding industrial environments.
The CX Series centrifugal blowers feature a precision aluminium die-cast housing designed for high-efficiency air delivery, low vibration, and superior thermal management across demanding industrial environments.

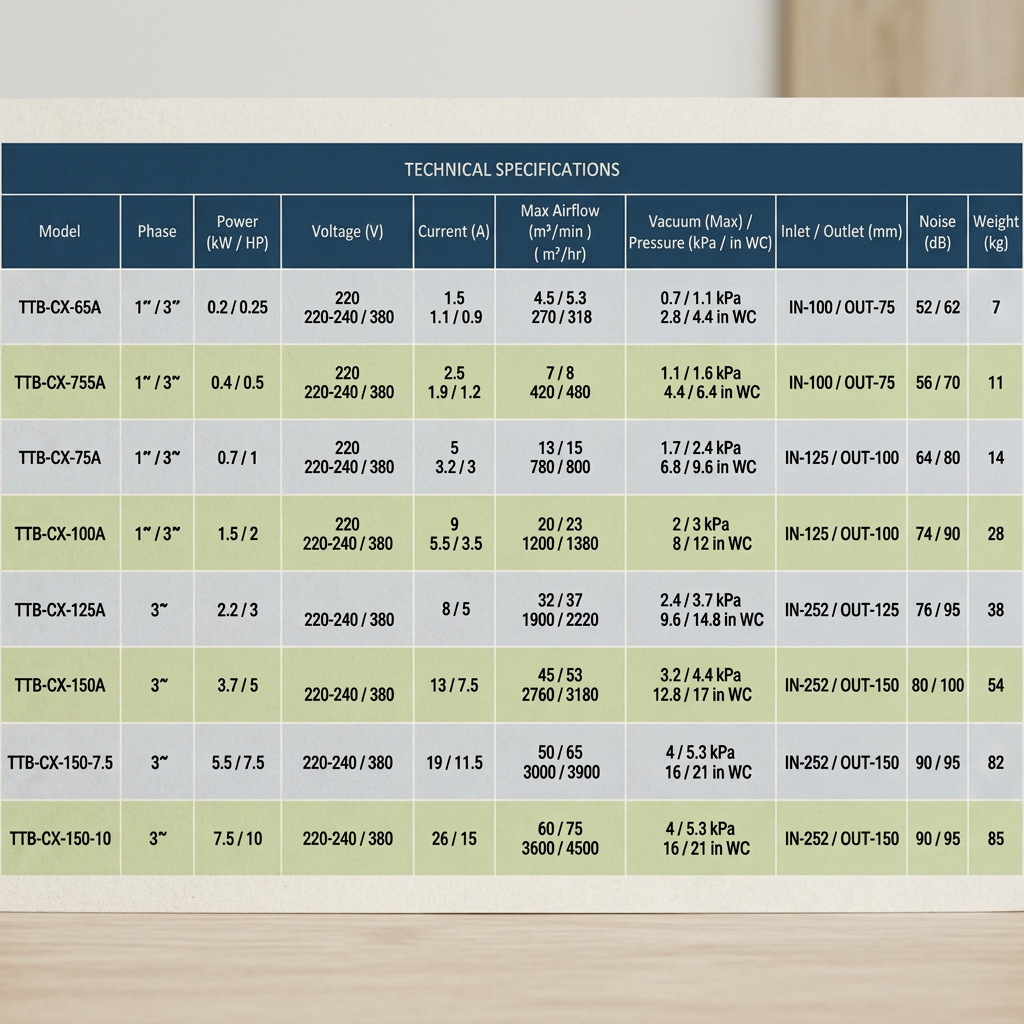

Key Technical Specifications & Features
Construction: Heavy-duty die-cast aluminium alloy housing and impellers, offering a lightweight profile, high corrosion resistance, and structural durability.
Heat Resistance: Supports custom high-temperature designs capable of handling internal housing circulating temperatures up to 200°C. Extended shafts, heat-dissipating cooling discs, and high-temp seals isolate the motor from extreme process heat.
Airflow Characteristics: Delivers medium-pressure, high-volume airflow with low dynamic noise and stable pressure output.
Motor & Enclosure: Integrated direct-drive TEFC (Totally Enclosed Fan-Cooled) motor with IP55 protection and Class F/H insulation options for continuous duty cycles.
Common Industrial Applications
Thermal Processing: Hot air circulation in industrial ovens, drying tunnels, curing systems, and plastic machinery.
Air Knife Systems: Surface drying, dust removal, and moisture blow-off on production lines.
Pneumatic Conveying: Material transfer, granule transport, and combustion air supply for burners and boilers.
Exhaust & Fume Extraction: Gas recirculation, environmental ventilation, and non-corrosive chemical fume exhaust.
The CX Series centrifugal blowers feature a precision aluminium die-cast housing designed for high-efficiency air delivery, low vibration, and superior thermal management across demanding industrial environments.
Key Technical Specifications & Features
Construction: Heavy-duty die-cast aluminium alloy housing and impellers, offering a lightweight profile, high corrosion resistance, and structural durability.
Heat Resistance: Supports custom high-temperature designs capable of handling internal housing circulating temperatures up to 200°C. Extended shafts, heat-dissipating cooling discs, and high-temp seals isolate the motor from extreme process heat.
Airflow Characteristics: Delivers medium-pressure, high-volume airflow with low dynamic noise and stable pressure output.
Motor & Enclosure: Integrated direct-drive TEFC (Totally Enclosed Fan-Cooled) motor with IP55 protection and Class F/H insulation options for continuous duty cycles.
Common Industrial Applications
Thermal Processing: Hot air circulation in industrial ovens, drying tunnels, curing systems, and plastic machinery.
Air Knife Systems: Surface drying, dust removal, and moisture blow-off on production lines.
Pneumatic Conveying: Material transfer, granule transport, and combustion air supply for burners and boilers.
Exhaust & Fume Extraction: Gas recirculation, environmental ventilation, and non-corrosive chemical fume exhaust.
The CX Series centrifugal blowers feature a precision aluminium die-cast housing designed for high-efficiency air delivery, low vibration, and superior thermal management across demanding industrial environments.
